SINOTRUK TX tractor truck new model with MAN technology - 副本

SINOTRUK TX tractor truck new model with MAN technology - 副本

Category： SINOTRUK tractor trucks
INQUIRY EMAIL

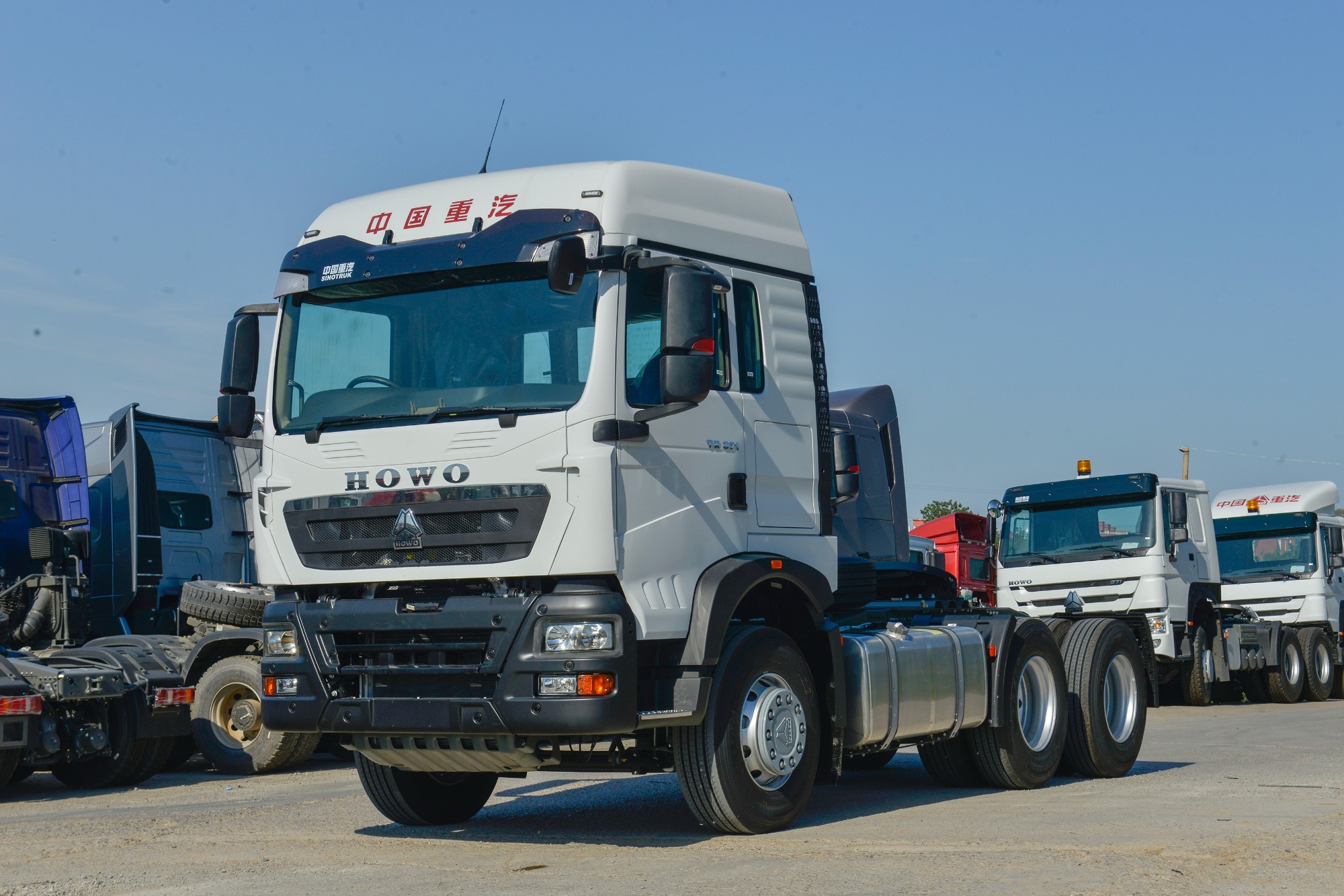

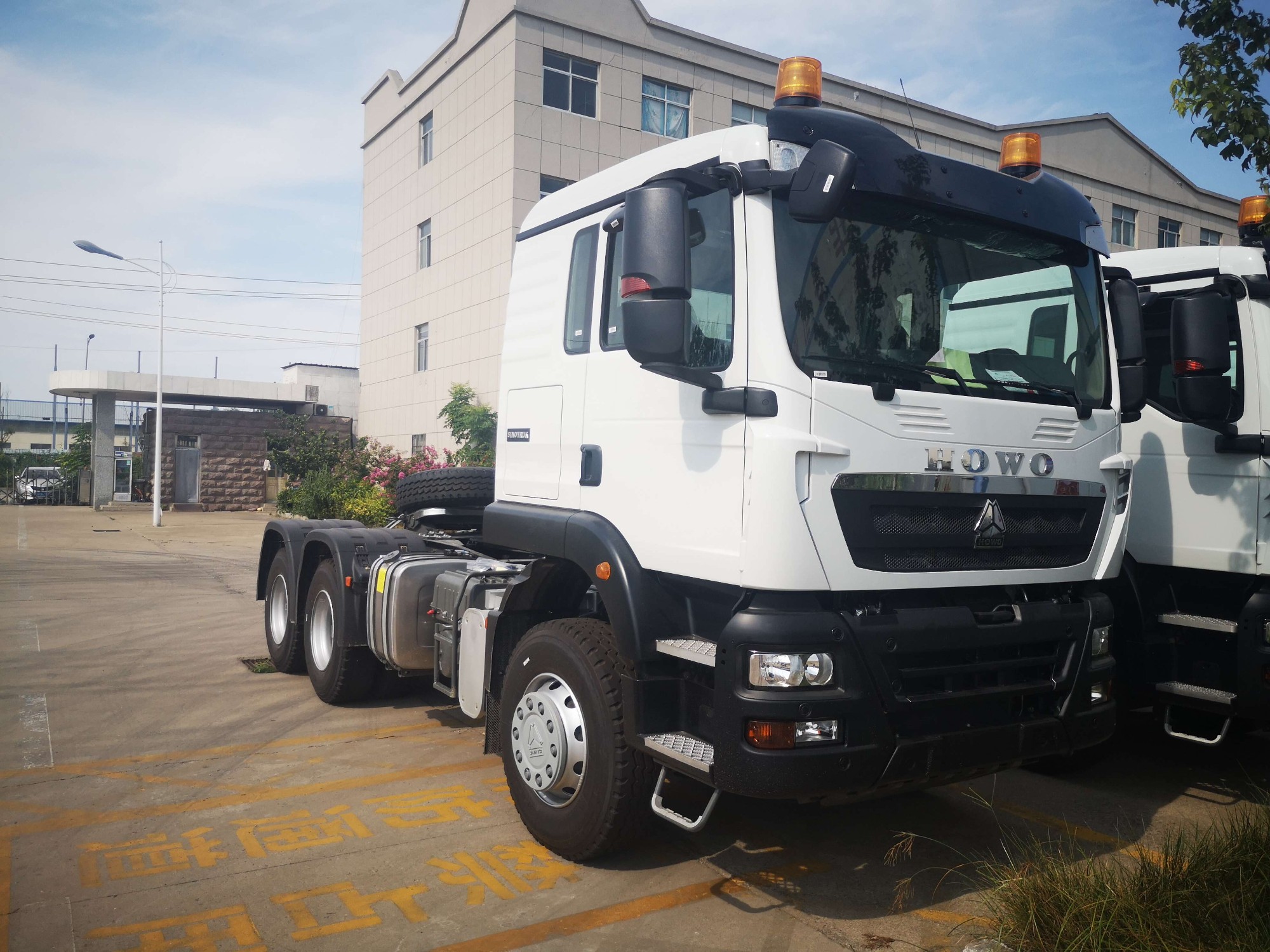

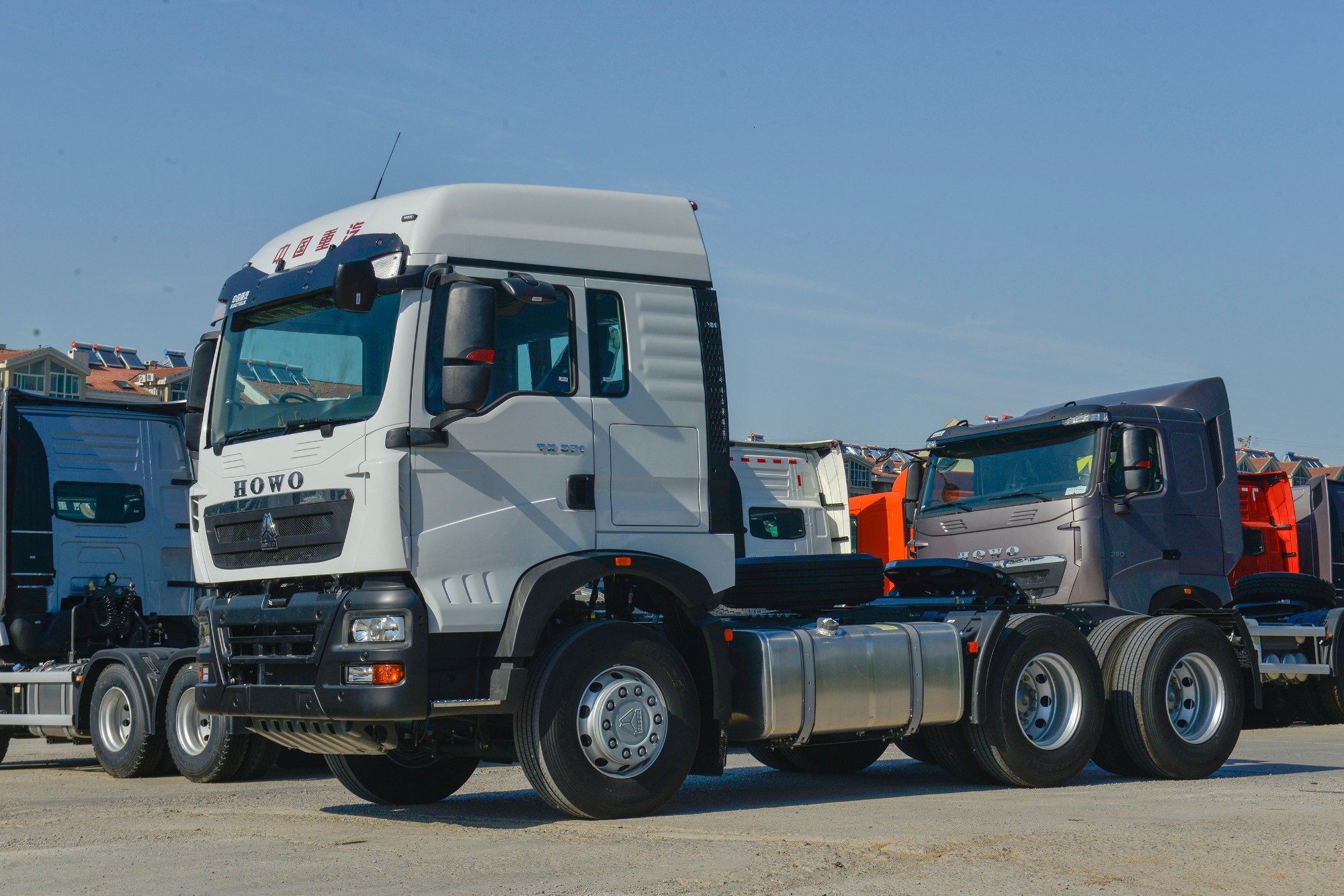

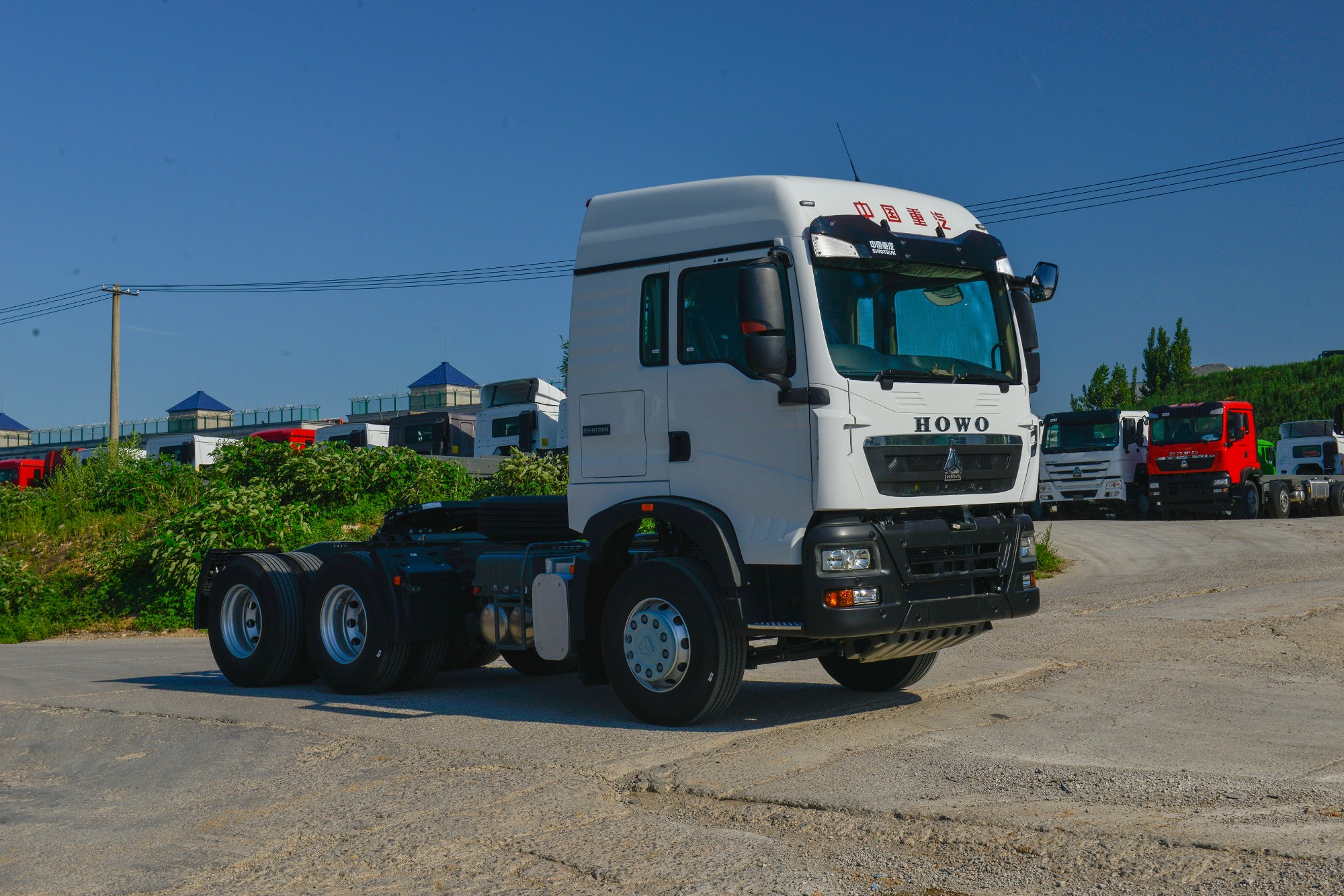

SINOTRUK TX tractor truck new model

Truck specifications

Cabin	Driving type 6x4 LHD
Cabin	HW76 Standard cab, with one bed and Air Condition, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	6900x2550x3350
	Wheel base (mm)	3200+1400
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	16/20
Weight in KGS	Tare Weight	9210
	Hauling Capacity	45000
	Front axles loading capacity	1x9000
	Rear axles loading capacity	2x16000
Max. driving speed（km/h）		102
Engine	Brand	Weichai
	Model	WP 10.38, WP12.40E201, WP12.43
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power（HP)	380HP, 400HP 430HP
	Emission standard	Euro 2
Gearbox	HW19710, 10 Forwards gear & 2 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	400
Tire	12R22.5 tire 11 pcs including one spare tire，
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake

SINOTRUK Truck introduction:

LEGENDS OF MILLIONS GLOBALLY WITNESS

SINOTRUK TX tractor, most popular model and top one market share in Africa,is grand , fortitude and fluency side by side， majestic and graceful , show his unique leadership temperament ,especially in the comfort, safety and convenience of human design to target the world - class heavy truck level.By the end of 2019, more than one million HOWO heavy truck had been sold.

ENGINE

High reliability，Surging Power，Low Consumption
Great adaptability of fuel oil makes it suitable for Africa road condition, reduces maintenance and service fees with lower cost of using.

Classic, mature and reliable
SINOTRUK HOWO series transmissions are adopted, offering high capacity and reliable quality.

Reliable Axles for Every Application
Our innovative state-of-art engineering and our quality-driven plantsin China give our axles outstanding performance in:Durability,Fuelefficiency,Noise behavior.
