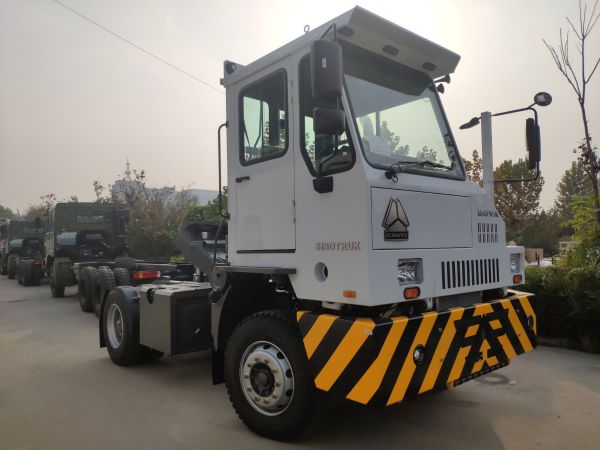

SINOTRUK HOVA 4×2 Terminal Tractor Truck
Introduction:
SINOTRUK HOVA tractors features
SINOTRUK low speed terminal tractor adopts unilateral cab, which has a wider field of vision. It’s extremely suitable for special working conditions such as low speed, short distance, overloading, frequent steering and continuous operation. In order to reduce driver’s fatigue, meet different operating requirements and improve operating efficiency, most vehicles use automatic transmission (ALLISON brand). And the saddle can be selected to be lifted or not.In addition to being suitable for loading and unloading ships at the terminal, reloading containers in logistics parks, bulk cargo transportation and ro-ro ship operations, it can also be used in short-distance and continuous operation sites such as steel mills, storage yards, airports, and mines.
What we can do :
Warranty: 2 years
Local after sales service: Offered free of charge, there is service team in most of countries in the world
Training: Offered free of charge
Spare parts: Relative spare parts are offered free of charge.
Payment: 30% deposit before production, 70% balance before shipping, all by TT or LC 3 months / 6 months 1 year
Specifications of HOVA terminal tractors
Cabin |
Driving type 4×2 LHD |
|
D12 unilateral enhanced cab with A/C, |
||
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
5275×2630×3320 |
Wheel base (mm) |
3200 |
|
Wheel track (front/rear) (mm) |
2046/1850 |
|
Turning radius (mm) |
5700-6000 |
|
Approach/Departure angle (°) |
21/48 |
|
Weight in KGS |
Tare Weight (kg) |
7550 |
Front axle |
HW7, fist type H-shaped rigid front axle |
|
Rear axle |
STR16, stamping reinforced central and hub reduction axle |
|
Engine |
Brand |
SINOTRUK |
Model |
WD615.62 |
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Horse Power(HP) |
266 / 280 |
|
Emission standard |
Euro Ⅱ |
|
Gearbox |
ALLISON 3500, 4 forward & 2 reverse |
|
Clutch |
Reinforced diaphragm spring clutch, diameter 430mm |
|
Steering Gear |
EATON brand, hydraulic steering with power assistance |
|
Fuel tank (L) |
230 |
|
Fifth Wheel |
Lifted 2” cast steel fifth wheel |
|
Tire |
11R22.5 tubeless tire, 7 pcs including one spare |
|
Brakes |
Brake: WABCO brake, with air desiccator Service brake: dual circuit compressed air brake Parking brake (hand brake): spring energy, compressed air operating on rear wheels Trailer brake: dual pipe compressed air brake |
